Digital precision.

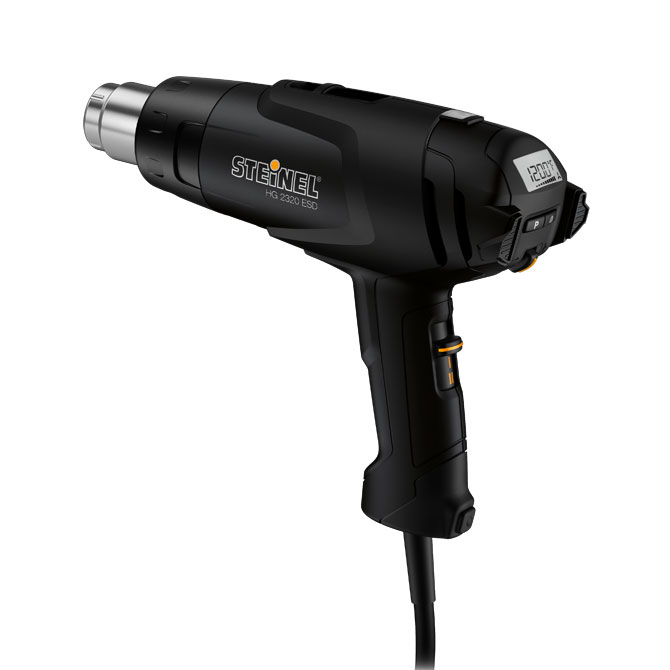

Heat gun HG 2320 ESD
The HG 2320 ESD is suitable for use in electrostatic protect areas (EPA). ESD (electrostatic
discharge) is the transfer of an electric charge that takes place when two object that have been
charged to different electric potentials, or have different electric potentials due to static
inductions, are brought into contact with each other. The discharge can cause product defect
as well as equipment failures, but the HG 2320 ESD has a conductive hosing that will not build
up or hold a static charge when used in EPA. Combined with all the features of the HG 2320 E
such as precision temperature control, the LOC feature and customizable programs, this is the
Ultimate ESD-Safe Tool.
Technical specifications
Power: 1600 W
Amps: 13.5 A
Temperature: 120 - 1200 °F ( 50 - 650 °C )
Airflow rate stage 1: 4-7 ( +/- 0.5 cfm )
stage 2: 8-13 cfm ( +/- 0.5 cfm )
Temperature setting: on display,
in 10° F steps by toggle
Heating element: ceramic heating element
Lockable Override Control ( LOC ): yes
Create Preset Customizable Programs: yes
Thermal cutout: yes
Thermostat: yes
Double Insulated: yes
Power Cord: Industrial grade rubber
Nozzle Diameter: 1.34" ( 34.00 mm )
Dimensions ( l × w × h ): 10.00" × 3.40" × 7.90"
Voltage: 120 VAC, 50/60 HZ
Weight: 1.66 lbs ( 26.63 oz )
Warranty: One year limited
