HG 2320 E (In a case)

Digital precision.

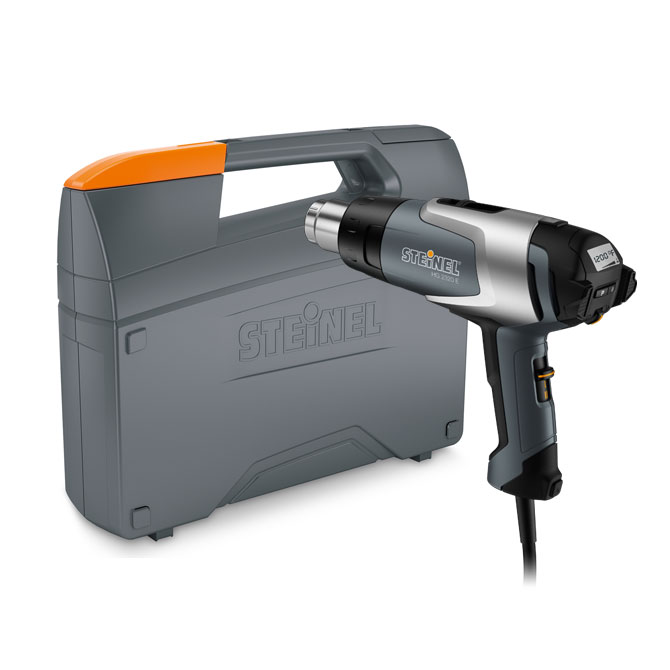

Heat gun HG 2320 E in a Case

Cutting-edge technology for perfect results: The HG 2320 E generates an impressive 1,600 watts

of power and delivers hot air between 120 and 1,200 °F. Temperature is very easy to control via

toggle, giving you absolute precision. Together with the residual heat indicator, the LCD information

display ensures additional certainty while the four individually selectable and customizable

programs provide maximum flexibility. At the same time, all tool settings can be locked using the

LOC function to rule out any accidental changes. In conjunction with the various push-on nozzles

from the range of accessories, the HG 2320 E is an excellent choice for working on heat-sensitive

objects. The heat gun is also available in an ESD version for use in electrostatically sensitive areas.

Technical specifications

Power: 1600 W

Amps: 13.5 A

Temperature: 120 - 1200 °F ( 50 - 650 °C )

Airflow rate stage 1: 4-7 ( +/- 0.5 cfm )

stage 2: 8-13 cfm ( +/- 0.5 cfm )

Temperature setting: on display,

in 10° F steps by toggle

Heating element: ceramic heating element

Lockable Override Control ( LOC ): yes

Create Preset Customizable Programs: yes

Thermal cutout: yes

Thermostat: yes

Double Insulated: yes

Power Cord: Industrial grade rubber

Nozzle Diameter: 1.34" ( 34.00 mm )

Dimensions ( l × w × h ): 10.00" × 3.40" × 7.90"

Voltage: 120 VAC, 50/60 HZ

Weight: 1.66 lbs ( 26.63 oz )

Warranty: One year limited

See Steinel Catalog for correct accessories to fit your specific heat gun.

	SPECIAL ACCESSORIES
	Temperature Scanner HL Scan 110048403 (HG 2320 E, HL 2020 E, HL 1920 E, HL 1820 S)   HL Light 110047650 (HG 2320 E, HL 2020 E, HL 1920 E, HL 1820 S)                   Fine Dust Filter 110028647 (HG 2320 E, HL 2020 E, HL 1920 E, HL 1820 S)   Plastic Hanger 110045172                     Hot Air Tool Stand w/ Suction Base 110049586 (HG 2320 E, HL 2020 E, HL 1920 E, HL 1820 S)    Hot Air Tool Stand w/ Magnetic Base 110049589 (HG 2320 E, HL 2020 E, HL 1920 E, HL 1820 S)                    Heavy Duty Carrying Case 110049790   Metal Heat Gun Stand 110049032

	REMOVING, SHAPING AND HEAT SHRINKING
	Spreader Nozzle 50mm 110048643   Spreader Nozzle 75mm 110048644                   Window Nozzle 50mm 110048750    Window Nozzle 75mm 110048749                    Lap Welding Slit Nozzle 20mm 110048649   Reduction Nozzle 20mm 110048751                    Reflector Nozzle 75mm 110048650   Reflector Nozzle 39mm 110048645

	SOLDERING, SPOT HEATING AND HEAT-SHRINKING
	Reduction Nozzle 6mm 110037033   Reduction Nozzle 14mm 110048647             Reduction Nozzle + Reflector Nozzle 9mm 110048646             Pinpoint Reducer 110049668   Reflector Nozzle 14mm 110048752              Sleve Reflector Nozzle 50x35mm 110038724

	FOR WELDING ROOF MEMBRANES,-SHEETINGS AND -TARPUALINS
	Welding Nozzle 110048648 (Pushes onto Reduction NOzzle 9mm)   Welding Nozzle 110048747 (Pushes onto Reduction Nozzle 9mm)                     Angle Slit Nozzle 40mm 110048748    Wide-Slit Nozzle 102270901 Pushes onto Reduction Nozzle 14mm)                    Pressure Roller Ø 45 mm  110049584  ( with ball bearing, single arm, silicone roller )   Pressure Roller Ø 35 mm  110031646  ( with ball bearing, single arm, silicone roller )                   Pressure Roller Ø 50 mm  110038455  ( with ball bearing, single arm, rubber roller )    Pressure Roller Ø 33 mm  110048203  ( with ball bearing, single arm, teflon roller )                    ABS Plastic Welding Rods 16 pcs 110048756   PP Plastic Welding Rods 16 pcs 110048757                    HDPE Plastic Welding Rods 16 pcs 110048753    PVC Plastic Welding Rods 16 pcs 110048754                    Tarpaulin Scissors 110038728     Tarpaulin Scissors 110038728

	AUTO BODY REPAIR ACCESSORIES
	Temperature Guard 110049677   Wire Mesh 110049676                   ThermoFlexx Welding Rod 110049675   Welding Iron 110050171                    Reduction Nozzle 9mm 110037435
